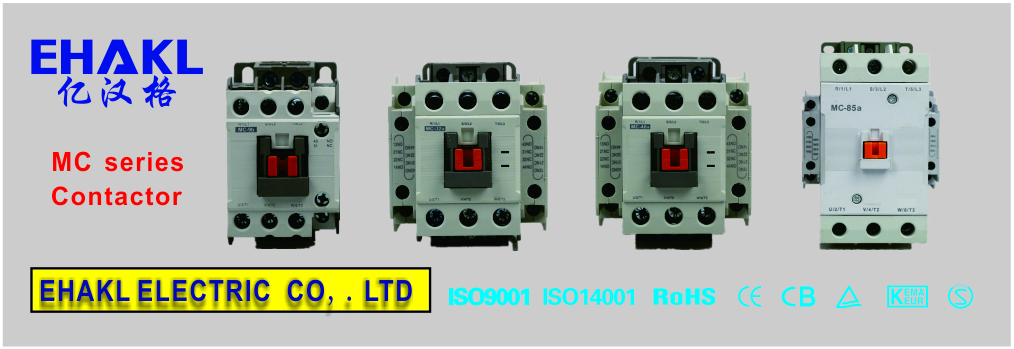

MC series AC contactor
MC series AC contactor
MC series AC contactor
| Type | Rated Current(A) | AC1 Rating Ith | |||||||
| AC3 Rating (IEC-60947-4) | |||||||||
| 200/240V | 380/440V | 500/550V | 690V | ||||||
| KW | A | KW | A | KW | A | KW | A | A | |
| MC-6a | 2.2 | 9 | 3 | 7 | 3 | 6 | 3 | 4 | 25 |
| MC-9a | 2.5 | 11 | 4 | 9 | 4 | 7 | 4 | 5 | 25 |
| MC-12a | 3.5 | 13 | 5.5 | 12 | 7.5 | 12 | 7.5 | 9 | 25 |
| MC-18a | 4.5 | 18 | 7.5 | 18 | 7.5 | 13 | 7.5 | 9 | 32 |
| MC-9b | 2.5 | 11 | 4 | 9 | 4 | 7 | 4 | 6 | 25 |
| MC-12b | 3.5 | 13 | 5.5 | 12 | 7.5 | 12 | 7.5 | 9 | 25 |
| MC-18b | 4.5 | 18 | 7.5 | 18 | 7.5 | 13 | 7.5 | 9 | 32 |
| MC-22b | 5.5 | 22 | 11 | 22 | 15 | 20 | 15 | 18 | 40 |
| MC-32a | 7.5 | 32 | 15 | 32 | 18.5 | 28 | 18.5 | 20 | 50 |
| MC-40a | 11 | 40 | 18.5 | 40 | 22 | 32 | 22 | 23 | 60 |
| MC-50a | 15 | 55 | 22 | 5 | 30 | 43 | 30 | 28 | 70 |
| MC-65a | 18.5 | 65 | 30 | 65 | 33 | 60 | 33 | 35 | 100 |
| MC-75a | 22 | 75 | 37 | 75 | 37 | 64 | 37 | 42 | 110 |
| MC-85a | 25 | 85 | 45 | 85 | 45 | 75 | 45 | 45 | 135 |
| MC-100a | 30 | 105 | 55 | 105 | 55 | 85 | 45 | 65 | 160 |
| MC-130a | 37 | 130 | 60 | 130 | 60 | 90 | 55 | 60 | 160 |
| MC-150a | 45 | 150 | 75 | 150 | 70 | 100 | 55 | 60 | 210 |
| MC-185a | 55 | 185 | 90 | 185 | 110 | 180 | 110 | 120 | 230 |
| MC-225a | 75 | 225 | 132 | 225 | 132 | 200 | 140 | 150 | 275 |
| MC-265a | 80 | 265 | 147 | 265 | 147 | 225 | 160 | 185 | 300 |
| MC-330a | 90 | 330 | 160 | 330 | 160 | 280 | 200 | 225 | 350 |
| MC-400a | 125 | 400 | 200 | 400 | 225 | 350 | 250 | 300 | 450 |
| MC-500a | 147 | 500 | 265 | 500 | 265 | 400 | 300 | 380 | 580 |
| MC-630a | 190 | 630 | 330 | 630 | 330 | 500 | 400 | 420 | 660 |
| MC-800a | 220 | 800 | 440 | 800 | 500 | 720 | 500 | 630 | 900 |
