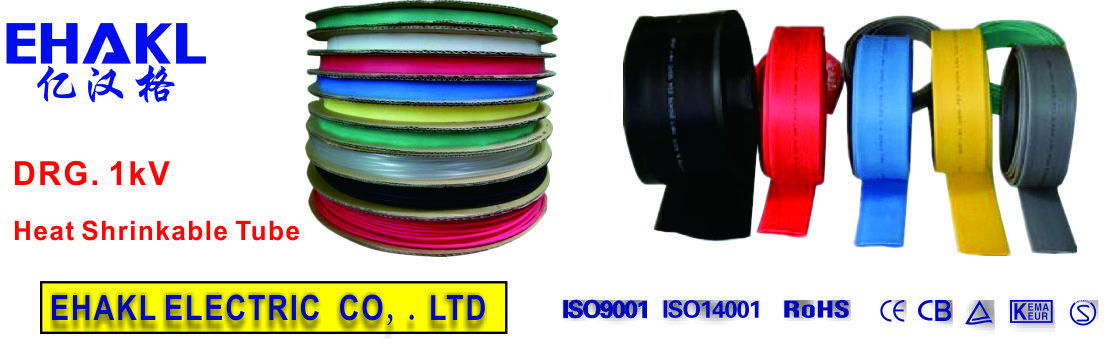

DRS series Thermal Shrinkable Tube
DRS.1KVA Low Temperature Low Pressure Heat Shrinkable Sleeve
DRS low temperature and low pressure heat shrinkable sleeve is an emerging high-tech product. It has good physical and chemical properties, corrosion resistance, insulation, heat dissipation and flame retardant properties. The product is widely used in electric power, electrical appliances, communications, ships, petroleum, chemical, mining, explosion-proof electrical appliances, lighting fixtures, high and low voltage switchgear, box transformer, power transmission and distribution, power plant, and military engineering to provide a high-tech insulation protection material, suitable for bronze, aluminum, insulation, protection and identification of wire and cable terminals and connectors, wire components of electrical systems, insulation protection of terminals and connectors, and wire bunching in flexible wire harnesses. And easy to use, just use hot air gun, gas welding gun or oven heating can shrink the casing.
color
red, yellow, green, black, blue, white, transparent, brown, purple, gray, yellow-green
| Specification (mm) |
thickness (mm) |
meters/plate | meters/piece | plate/each |
|
φ1.0 |
0.145±0.01 |
400 |
10800 | 27 |
|
φ1.5 |
0.150±0.01 |
400 |
10400 | 26 |
|
φ2.0 |
0.155±0.01 |
200 |
5200 | 26 |
|
φ2.5 |
0.160±0.01 |
200 |
4600 | 23 |
|
φ3.0 |
0.165±0.01 |
200 |
4000 | 20 |
|
φ3.5 |
0.170±0.01 |
200 |
3800 | 19 |
|
φ4.0 |
0.175±0.01 |
200 |
3000 | 15 |
|
φ4.5 |
0.180±0.01 |
200 |
2600 | 13 |
|
φ5.0 |
0.185±0.01 |
100 |
1600 | 16 |
|
φ6.0 |
0.190±0.01 |
100 |
1400 | 14 |
|
φ7.0 |
0.195±0.01 |
100 |
||
|
φ8.0 |
0.200±0.01 |
100 |
||
|
φ9.0 |
0.205±0.01 |
100 |
||
|
φ10.0 |
0.210±0.01 |
100 |
||
|
φ11.0 |
0.215±0.01 |
100 |
||
|
φ12.0 |
0.220±0.01 |
100 |
||
|
φ13.0 |
0.225±0.01 |
100 |
||
|
φ14.0 |
0.230±0.01 |
100 |
||
|
φ15.0 |
0.235±0.01 |
100 |
||
|
φ16.0 |
0.240±0.01 |
100 |
||
|
φ18.0 |
0.245±0.01 |
100 |
||
|
φ20.0 |
0.255±0.01 |
100 |
||
|
φ22.0 |
0.260±0.01 |
100 |
||
|
φ25.0 |
0.270±0.02 |
25 |
800 | |
|
φ28.0 |
0.280±0.02 |
25 |
700 | |
|
φ30.0 |
0.290±0.02 |
25 |
||
|
φ35.0 |
0.305±0.02 |
25 |
||
|
φ40.0 |
0.320±0.02 |
25 |
||
|
φ50.0 |
0.340±0.02 |
25 |
||
|
φ60.0 |
0.360±0.02 |
25 |
||
|
φ70.0 |
0.380±0.02 |
25 |
||
|
φ80.0 |
0.400±0.02 |
25 |
||
|
φ90.0 |
0.425±0.02 |
25 |
||
|
φ100 |
0.450±0.02 |
25 |
||
|
φ120 |
0.500±0.02 |
25 |
||
|
φ150 |
0.575±0.02 |
25 |
||
|
φ180 |
0.625±0.02 |
25 |
