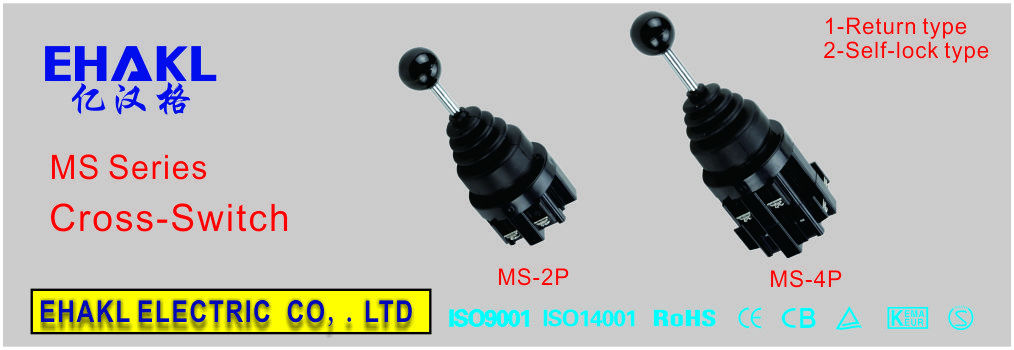

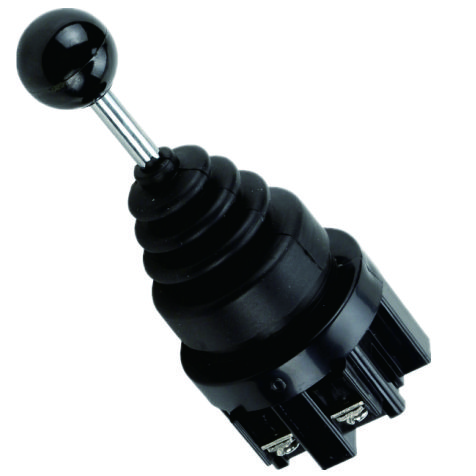

MS series cross switch
MS series cross switch
cross switch: 2-pole and 4-pole self-recombination and self-locking type
| Up | Direction 2 and Direction 4 |
| contact structure | 2 normally open/2 long open and 2 long closed |
| Action | Automatic reset/self-locking |
| assembly aperture | Φ30m/m |
| voltage | 110V(5A), 220V(3A), 440V(1A) |
| starting current | 110V(50A), 220V(30A), 440V(10A) |
| continuous current | 10A |
| insulation resistance | More than 100 MΩ |
| electrical life | More than 500,000 times |
| mechanical life | More than 500,000 times |
| ambient temperature | -20 ℃ ~ 50 ℃ |
| features | rubber shirt pullover waterproof, oil-proof and dustproof functions |
